Item No.:
|
SP80B
|
|
Name:
|

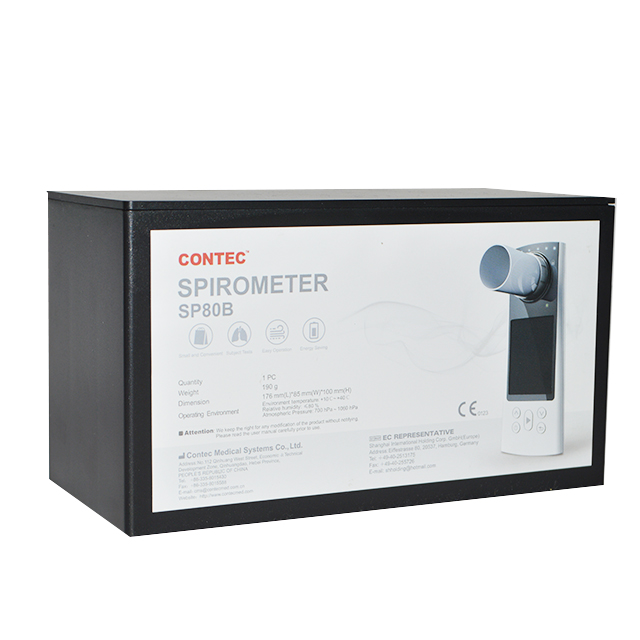

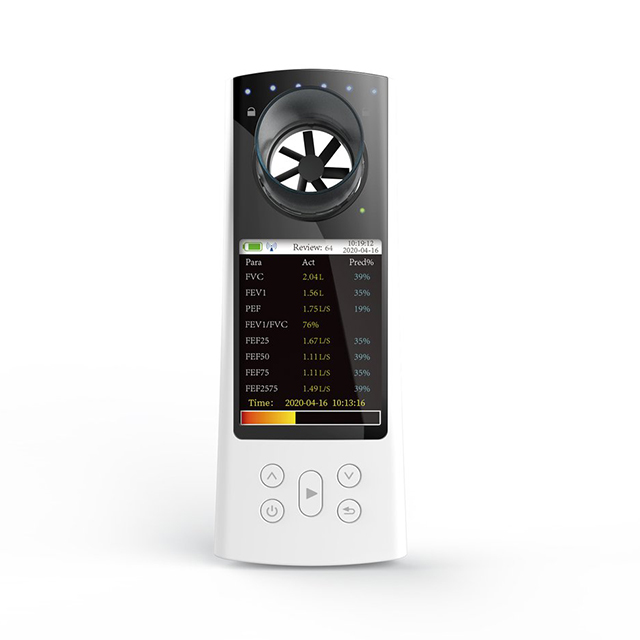

CONTEC SP80 DIGITAL SPIROMETER
|
|
UPC Code:
|
21050200017
|
|
Case Pack:
|
1 |
|
Inner Pack:
|
1 |
|
Detail Description:
|
The SPIROMETER is a hand-held equipment for checking lung conditions, adopts the infrared signal acquisition mode for measuring items related to FVC, and it is applicable for hospital, clinic, family for routine test.
Functions
• Forced Vital Capacity (FVC), forced expiratory volume in one second (FEV1) to forced vital capacity (FVC) ratio (FEV1/FVC), peak expiratory flow (PEF), forced expiratory flow at 25 % of FVC (FEF25), forced expiratory flow at 50 % of FVC (FEF50), forced expiratory flow at 75 % of FVC (FEF75) and forced expiratory flow from 25 %~ 75 % of FVC (FEF2575) can be measured;
• The personnel information (including height, age, sex, etc.) can be set.
• Flow-volume chart, volume-time chart display.
• The data can be stored, deleted, uploaded and reviewed.
• Trend chart display.
• Health state indication.
• Calibration function.
• Over - limit prompt function for volume and flow.
• Indicate expiration within 6 seconds by indicators.
• Start measuring by one-button.
• The data can be transmitted by Bluetooth or USB cable.
• Real-time clock can be set and displayed.
• Battery power indication.
• Automatic shutdown when there is no operation within two minutes.
Performance:
• Display mode: 2.8'' LCD
• Volume range: 0 ~ 10 L
• Volume accuracy: ± 3 % or ± 0.05 L (whichever is greater)
• Flow range: 0 L/s ~16 L/s
• Flow accuracy: ± 5 % or ± 0.2 L/s (whichever is greater)
• Working current: 200 mA
• Power supply: rechargeable lithium battery
• Safety class: internally powered equipment, type BF applied part
Accessories:
• One User Manual
• One USB cable
• Two mouthpieces
Physical characteristics
Dimension: 160 mm (L) × 65 mm (W )× 45 mm (H)
Weight: 190 g
|
|
